Basket Strainers and Y-Type Strainers are really common, in pharmaceutical piping systems. They help filter out the stuff.
Basket Strainers and Y-Type Strainers do the job, which is to remove the solids that are floating around.. They are not exactly the same.
The design of Basket Strainers and Y-Type Strainers is different. The amount of stuff they can handle is also different. And which one you should use depends on what you need to do with Basket Strainers and Y-Type Strainers.
Simple & Efficient filtration for systems where temporary shutdown is acceptable. Available in MS, SS304, SS316 and duplex steel.
1. Basic Function (Common for Both)
Both Basket Strainers and Y-Type Strainers are used to protect equipment from damage caused by debris and other objects. Basket Strainers and Y-Type Strainers do this by catching these things before they can get into the equipment. Basket Strainers and Y-Type Strainers are very important, for keeping systems running smoothly.
- Remove sand, rust, scale, and solid particles
- Protect pumps, valves, flow meters, and membranes
- Improve system reliability and equipment life
2. Design Difference
| Parameter | Y-Type Strainer | Basket Strainer |
|---|---|---|
| Design | Compact Y-pattern inline | Vertical basket with cover |
| Installation | Inline (horizontal/vertical) | Horizontal pipeline |
| Filtration Area | Smaller | Large basket area |
| Space Requirement | Less | More |
3. Flow vs Performance
| Parameter | Y-Type | Basket |
|---|---|---|
| Flow Rate | Low to medium | Medium to very high |
| Dirt Holding | Low | High |
| Pressure Drop | Low | Very low |
| Continuous Operation | Excellent | Excellent |
Basket Strainer (Industrial Use)
Basket strainers are really good, for systems that deal with a lot of flow and solid stuff.
The big area that does the filtering helps to reduce the pressure and how often you need to clean the Basket strainers. This is because the Basket strainers have a filtration area.
4. Industrial Uses:
- Raw water intake systems
- ETP & STP plants
- Pump suction lines

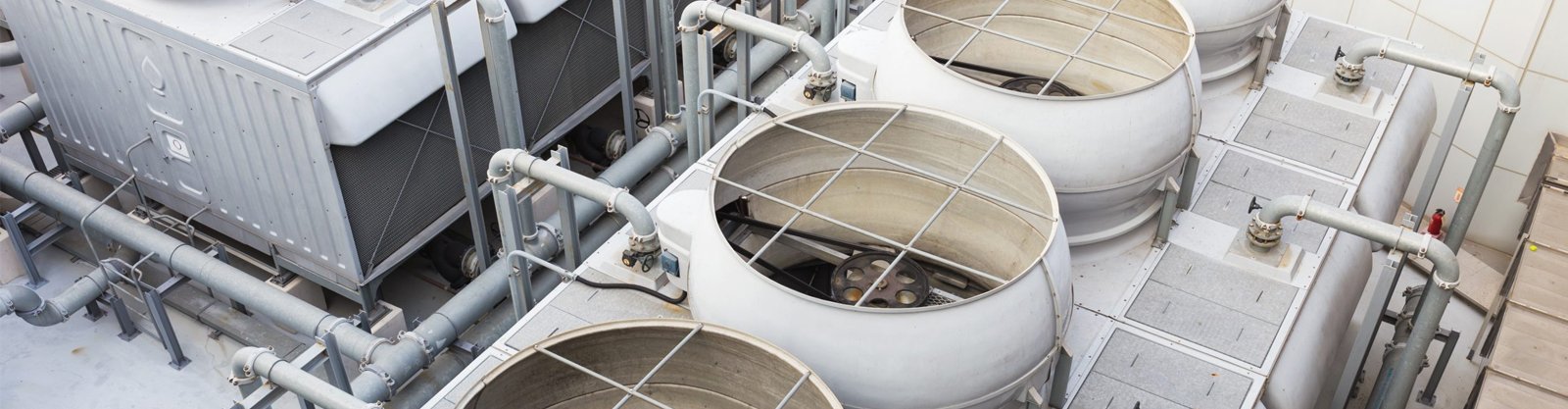

- Cooling tower circulation
- Process water filtration
Pharma Uses:
- Raw water pre-treatment
- Cooling water utilities
- Effluent & utility services
- Typical MOC: SS304 / SS316
5. Maintenance & Cleaning Comparison
| Parameter | Y-Type Strainer | Basket Strainer |
|---|---|---|
| Cleaning Method | Screen removal / drain | Lift-out basket |
| Cleaning Frequency | More frequent | Less frequent |
| Downtime | Moderate | Low |
6. Selection Guide (Industry & Pharma)
| Condition | Recommended Strainer |
|---|---|
| Limited space | Y-Type |
| High flow rate | Basket |
| Steam or gas service | Y-Type |
| High dirt load | Basket |
| PW / WFI line | Y-Type |
| Raw water / ETP | Basket |
